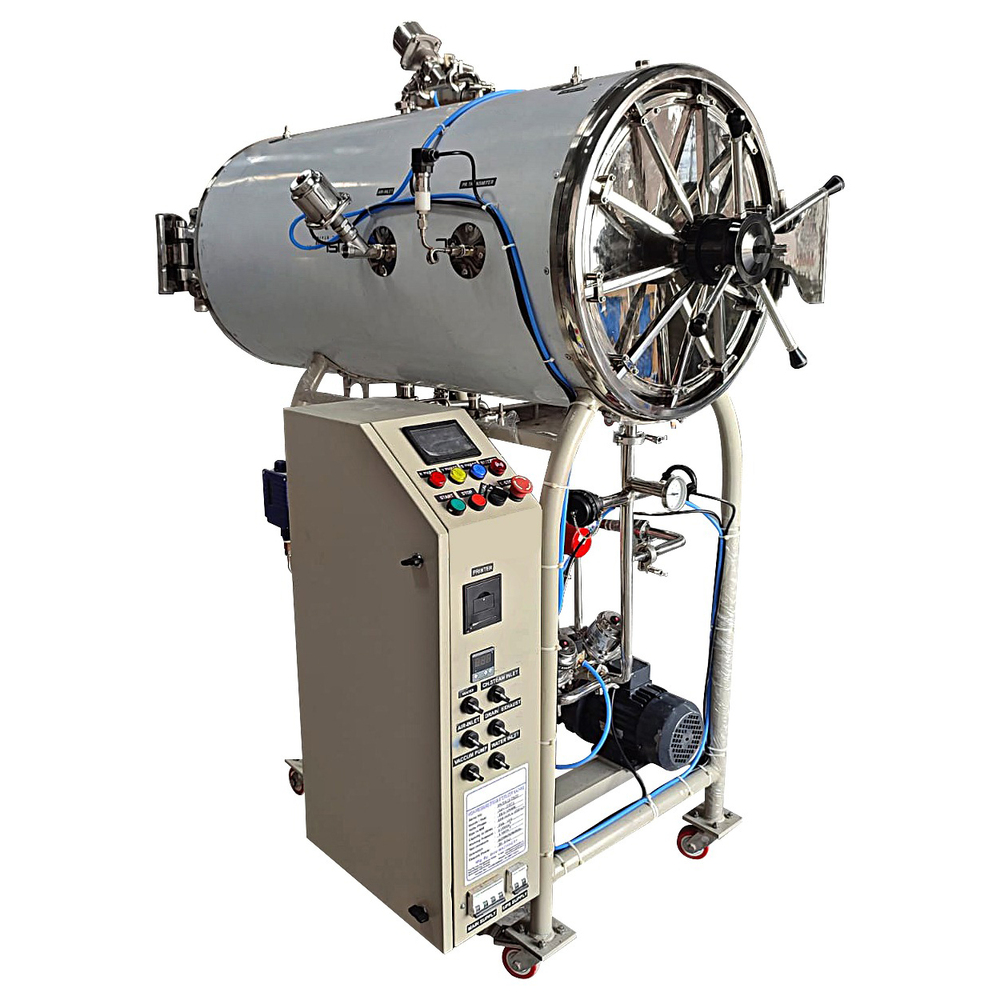

HORIZONTAL AUTOCLAVE

Get a Price/Quote

MOQ : 1 Unit

HORIZONTAL AUTOCLAVE Specification

Type
Horizontal autoclave, triple-walled

Chamber Size
1000 x 600 x 600 mm

Chamber Thickness
6 mm (SS 304)

Outer Size
2060 x 1050 x 1650 mm

Compressed Air
0.6~0.8 Mpa

Door Type
Horizontal Slide Door

Design Pressure
0.25 Mpa

Working Pressure
0.22 Mpa

Design Temperature
139C

Heat Uniform
2C throughout chamber

Insulation
Mineral wool thermal insulation

Net Weight
About 950 kg

Recording Parameters
Digital recorder/chart recorder

Spraying Mode
Uniform multidirectional spray

Outer Trolley
Stainless steel construction

Inner Trolley
Removable, perforated stainless steel

Spraying Piping
Stainless steel pipe system

Steam
Saturated steam, internally generated or external

Sterilizing Temperature
121C to 134C

Working Temperature
Up to 134C

Sterilization Time
0-99 minutes (adjustable)

Temperature Scope
105C to 138C

Piping System
304 stainless steel, welded and sealed

Valves
Multiple safety valves, pressure control

Power Consumption
12-18 kW (depending on model)

Chamber Material
High grade stainless steel SS 304/316

Power Supply
AC 220V/380V, 50/60Hz

Standards Compliance
Conforms to GMP/ISO/CE standards

Accessories
Spare gaskets, trays, loading carriage, printer connectivity

Display
Digital LCD/LED touch panel

Safety Features
Automatic pressure and temperature interlock, safety alarms, emergency stop

Water Supply
Automatic or manual

Door Seal
Silicone rubber automatic sealing

Drainage System
Automatic condensate drain with trap

Control System
Microprocessor based programmable logic controller (PLC)

Application
Hospital, pharmaceutical, lab, bioresearch sterilization

HORIZONTAL AUTOCLAVE Trade Information

Minimum Order Quantity
1 Unit

Main Domestic Market
All India

About HORIZONTAL AUTOCLAVE

Discover the ineffable excellence of our Trending and Featured Horizontal Autoclave, engineered for uncompromising sterilization in hospitals, pharmaceutical labs, and bioresearch. Constructed with rare, high-grade SS 304/316 stainless steel, its majestic triple-walled chamber embodies flawless hygiene and durability. The microprocessor-based PLC and digital touch display grant intuitive, precise control, while advanced safety interlocks and multiple alarms redefine protection. Automated water supply, drainage, and uniform multidirectional steam deliver superior results. GMP/ISO/CE compliance assures reliability, and optional accessories enhance versatility for discerning users.

Versatile Sterilization for Diverse Applications

The Horizontal Autoclave is specially crafted for use in hospitals, research laboratories, pharmaceutical and biotechnological settings. Ideal for sterilizing surgical instruments, laboratory glassware, and bioresearch materials, its smooth, stainless steel surface guarantees effortless cleaning and corrosion resistance. Key features such as programmable PLC control, digital LCD/LED display, and automated safety mechanisms make it a flawless solution for consistent and reliable sterilization performance across multiple surfaces and critical applications.

Optimized Export Logistics & Delivery Solutions

FOB Port options ensure streamlined international shipping for the Horizontal Autoclave, supporting robust export markets. Sample units are available upon request to facilitate evaluation and demonstration. With efficient logistics management, every order is carefully handled and handed over within an estimated delivery time of 4-6 weeks. Each shipment is meticulously prepared to minimize customs delays and guarantee safe arrival, solidifying trust for distributors and institutional buyers worldwide.

FAQ's of HORIZONTAL AUTOCLAVE:

Q: How does the microprocessor-based PLC enhance the operation of the Horizontal Autoclave?

A: The microprocessor-based programmable logic controller (PLC) enables precise control of sterilization parameters, allowing users to set, monitor, and automate complex cycles with ease, thereby optimizing performance and reliability.

Q: What safety features are integrated into the Horizontal Autoclave?

A: It is equipped with automatic pressure and temperature interlocks, multiple safety valves, alarms, emergency stop button, and an automatic silicone rubber door seal to maximize operator safety and equipment protection.

Q: Where can the Horizontal Autoclave be used effectively?

A: This autoclave is ideal for hospitals, pharmaceutical manufacturing, research and bioresearch labs, catering to sterilization needs where stringent hygiene standards are imperative.

Q: What is the process for drainage and water supply in this autoclave?

A: The system features both automatic and manual water supply options along with an automatic condensate drain and trap, ensuring efficient operation and easier maintenance.

Q: What benefits come from the uniform multidirectional spraying mode?

A: Uniform multidirectional sprays guarantee even steam distribution throughout the chamber, resulting in thorough sterilization and consistent heat uniformity, which is essential for meeting regulatory standards.

Q: When should the spare accessories such as gaskets and trays be used or replaced?

A: Spare gaskets and trays should be used for replacements during routine maintenance or when observed wear or damage might compromise sterilization effectiveness or safety.
